RCA-kabel NF-2405 Reference AIR

Kontakt oss for pris på custom-lengder. Inakustik produseres og prises i centimeter. Produksjonstid ca 2 uker.

Les merShow less
kr 20,490.00
Lengde
  • 1.0m
  • 1.25m
  • 1,50 m
Lagerstatus: På fjernlager (ca 1-2 uker levering)
Beskrivelse

RCA-kabel NF-2405 Reference AIR

Kontakt oss for pris på custom-lengder. Inakustik produseres og prises i centimeter. Produksjonstid ca 2 uker.

  • "Point-to-point Air Helix” for authentic sound
  • Air as the ultimate dielectric minimizes capacitance
  • Cross Link Super Speed waveguide for a balanced sound
  • The RCA-SL connectors are pressure-grouted using a force of 1.5 tonnes for a precision fit

Breathtaking sound thanks to air insulation - we have already created many innovative designs on the way to perfect insulation, such as DUO-PE insulation or PETS (PE Tube Support). The Referenz NF-2405 cable is another true milestone and an absolute world first in the cable sector.

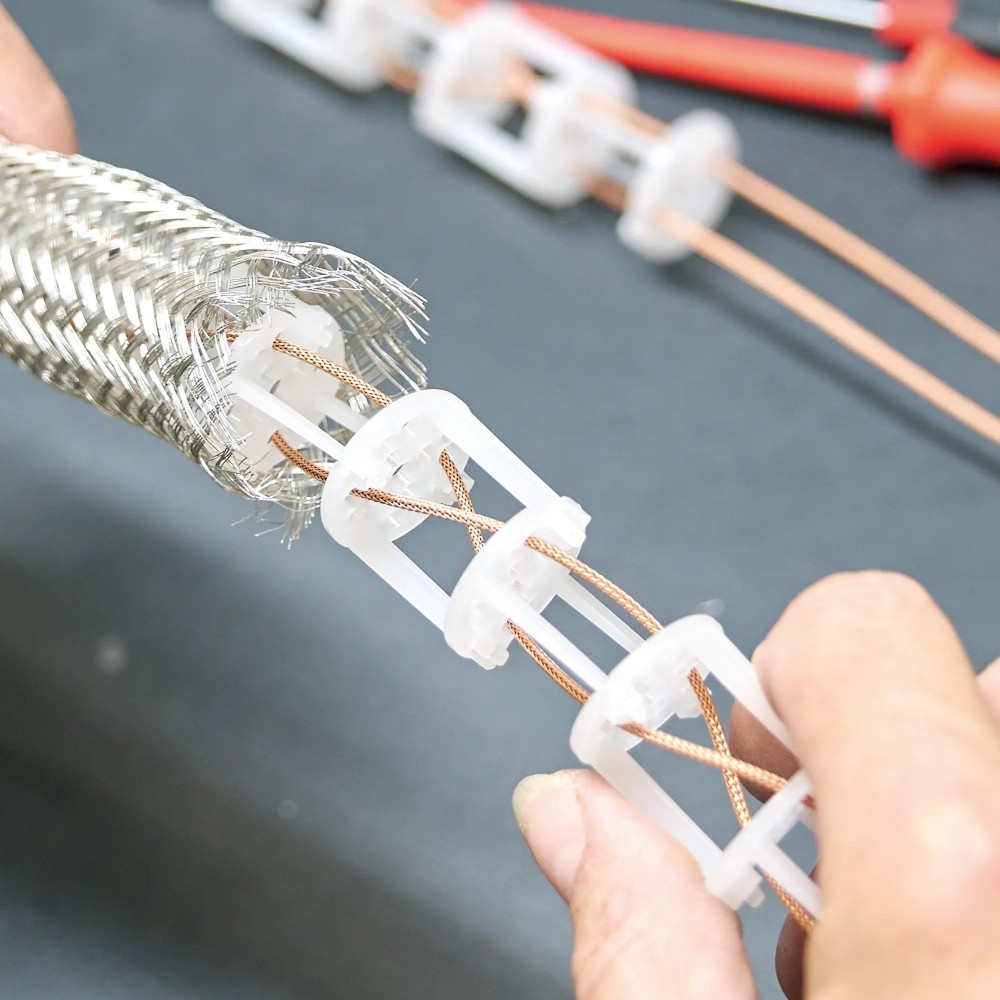

Normally, the conductors are kept at a distance from each other by more or less high-quality filling and insulation materials. With the NF-2405, however, the conductors run through a series of clips connected in series, which form the inner framework and give the NF-2405 exceptional flexibility for high-end cables.

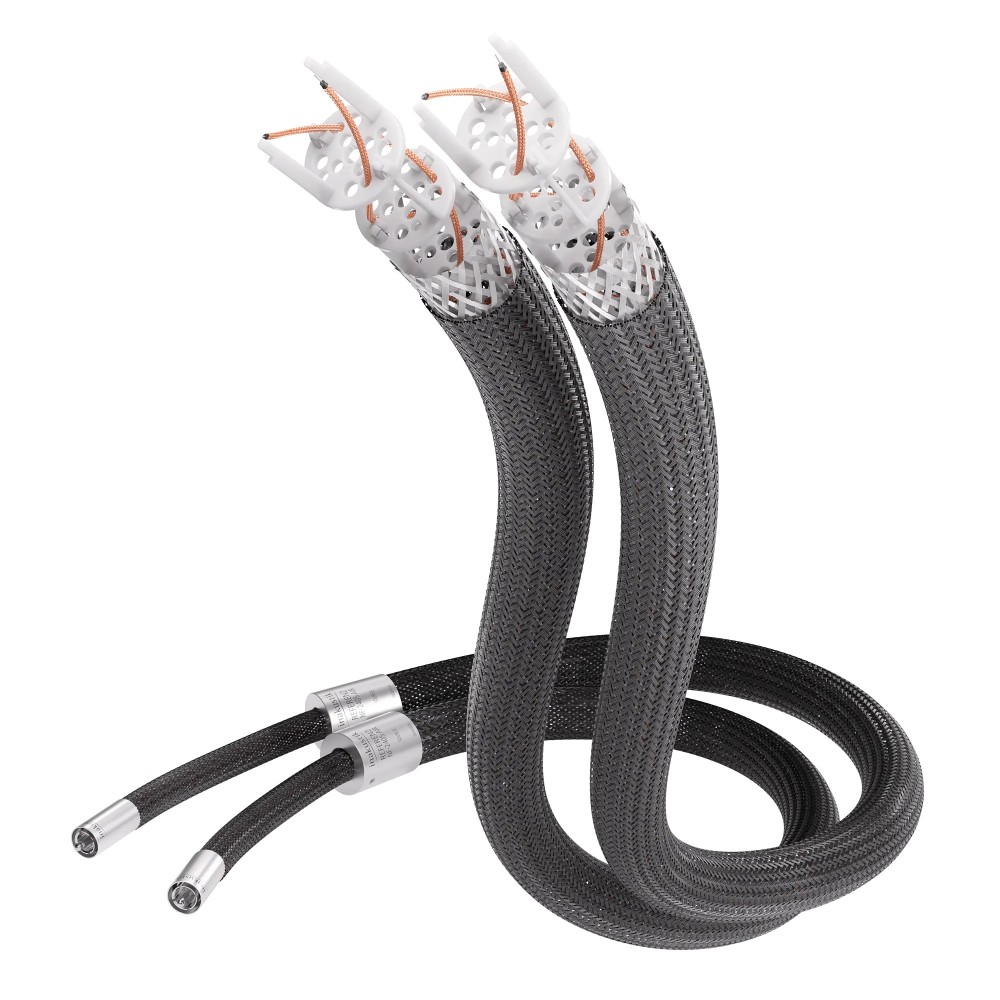

The NF-2405 is manufactured entirely in Germany, like all speaker and audio cables in the Referenz series. The clips are assembled by hand with meticulous care in the company's own factory and then the Cross Link super-speed waveguide is threaded in. After this, the resulting air helix is also shielded by hand and given a PE network jacket before the finished cable is assembled using the RCA plugs we developed ourselves.

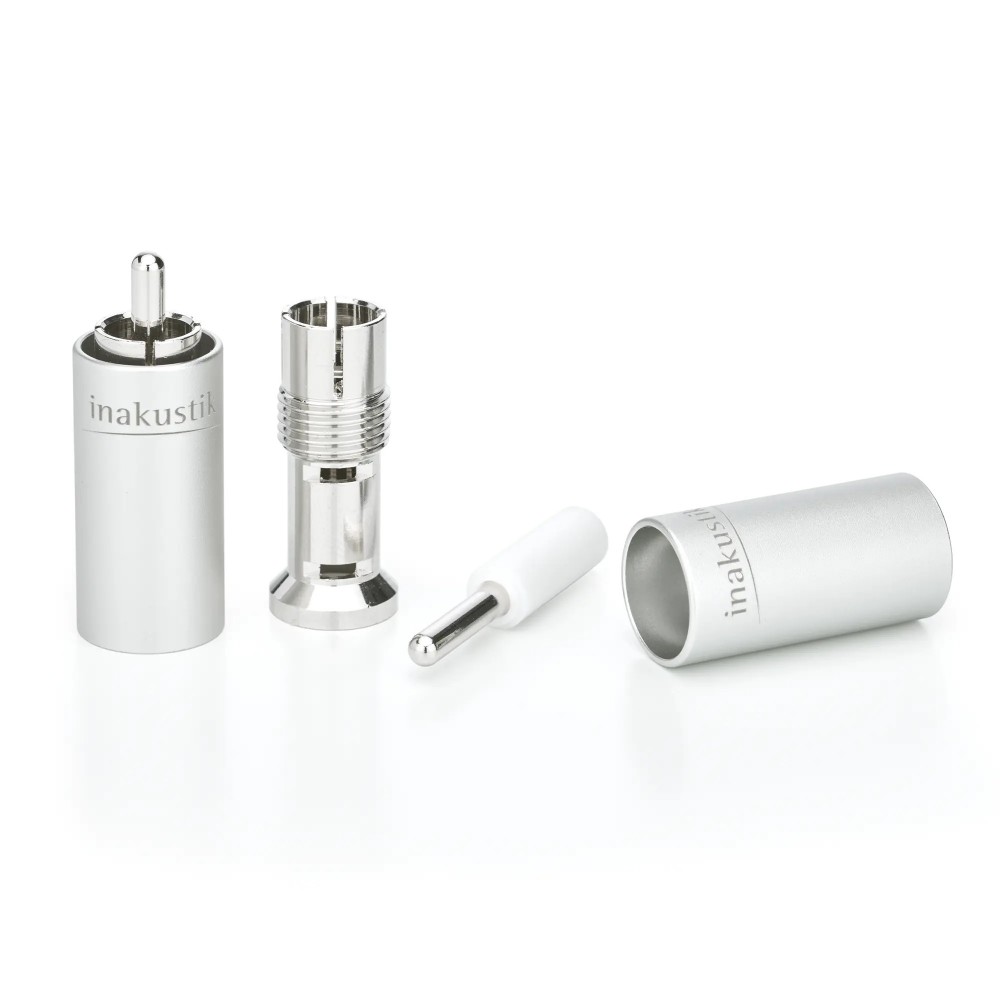

New RCA SL connector: Soldering is a reliable and well-established joining technique, but it has its drawbacks. Disadvantages include the presence of poorly conducting solder in the signal path and the emergence of low thermoelectric emfs. With the SL RCA Plug developed in-house, the connections from the signal conductor to the contact elements are precisely pressure-grouted together using a force of 1.5 tonnes. A further seemingly tiny improvement that brings great rewards in terms of audio performance.

Spesifikasjoner:

  • Cable diameter: 25 mm
  • Conductor design: Cross Link Super Speed waveguide
  • Conductor material: High-purity OFC copper
  • Conformity: CE, REACH, RoHS
  • Connector assembly: Pressure-grouted contacts (1.5 tonnes)
  • Connector housing: Solid metal
  • Contact enhancement: Rhodium-coated
  • Contact material: Tellurium copper
  • Customized assembly: On request
  • Design: Symmetrical
  • Dielectric: Air
  • Jacket: PE network jacket
  • Shielding: Dense copper braid, tin-plated (oxidation protection)
  • Produksjonsland: Tyskland
