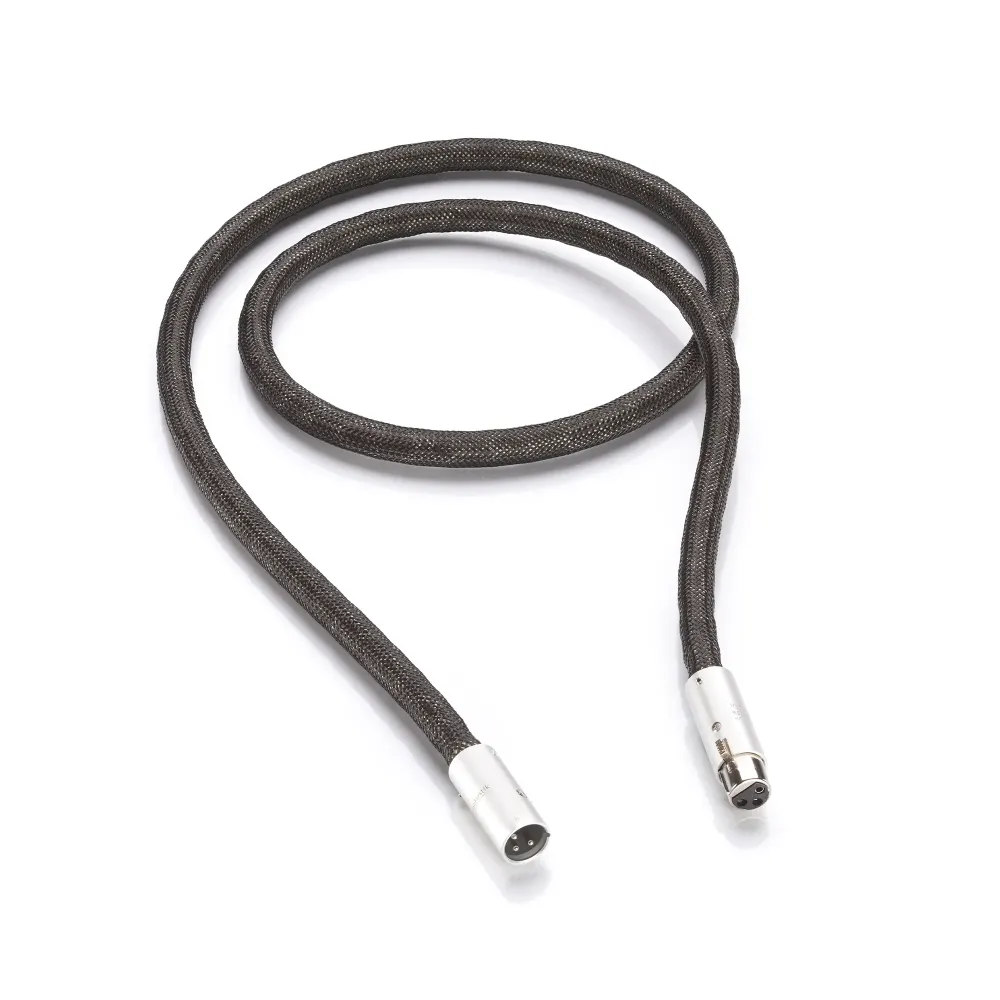

XLR-kabel NF-1205 Reference AIR

Kontakt oss for pris på custom-lengder. Inakustik produseres og prises i centimeter. Produksjonstid ca 2 uker.

• "Point-to-point Air Helix” for authentic sound
• Air as the ultimate dielectric minimizes capacitance
• Cross Link Super Speed waveguide for a balanced sound
• XLR connectors can be adjusted by +/- 45 degrees

Cable capacitance plays a decisive role, especially for audio cable connections between individual devices. As the signal sources are very weak and react sensitively to high cable capacitance, audio cables are virtually predestined for air insulation using air helix technology.

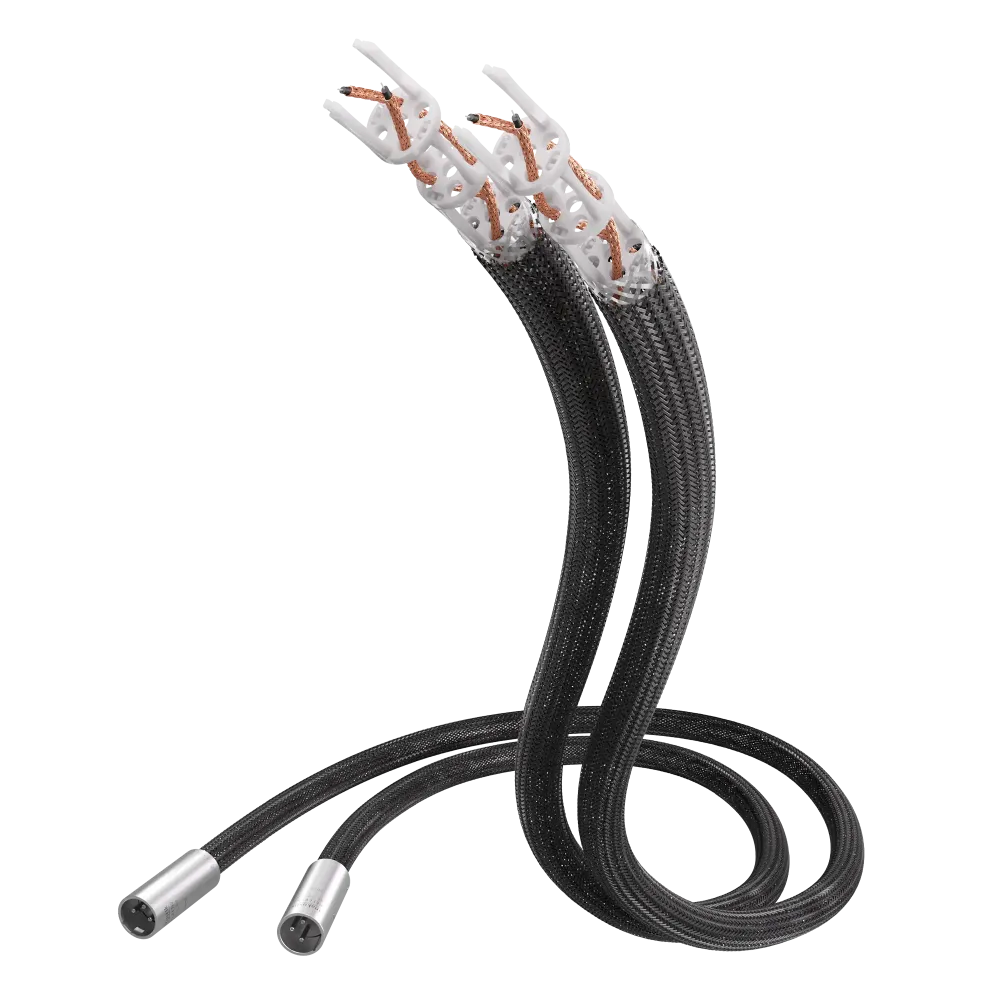

The NF-1205 is manufactured entirely in Germany, like all speaker and audio cables in the Referenz series. The clips are assembled by hand with meticulous care in the company's own factory and then the Cross Link super-speed waveguide is threaded in. The resulting Air Helix is then also shielded by hand and fitted with a PE network jacket before the finished cable is assembled with the XLR 180° connectors developed in-house.

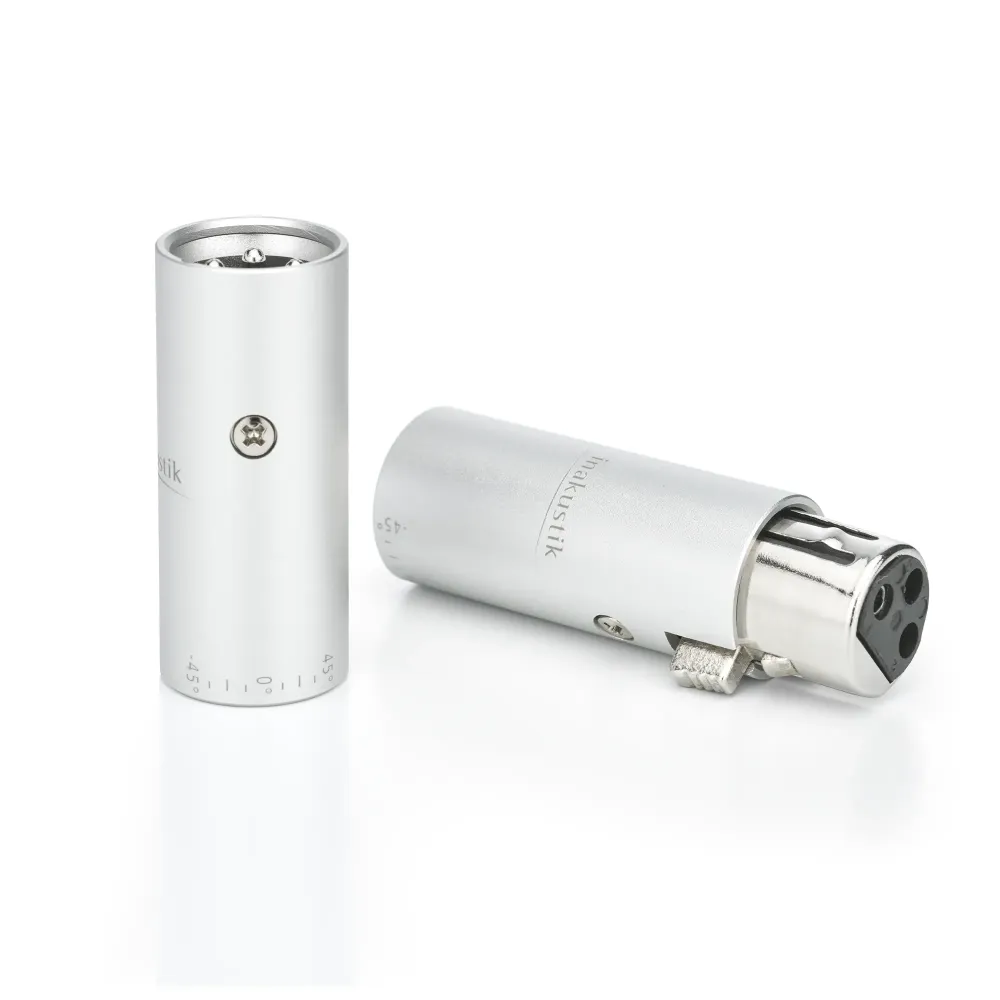

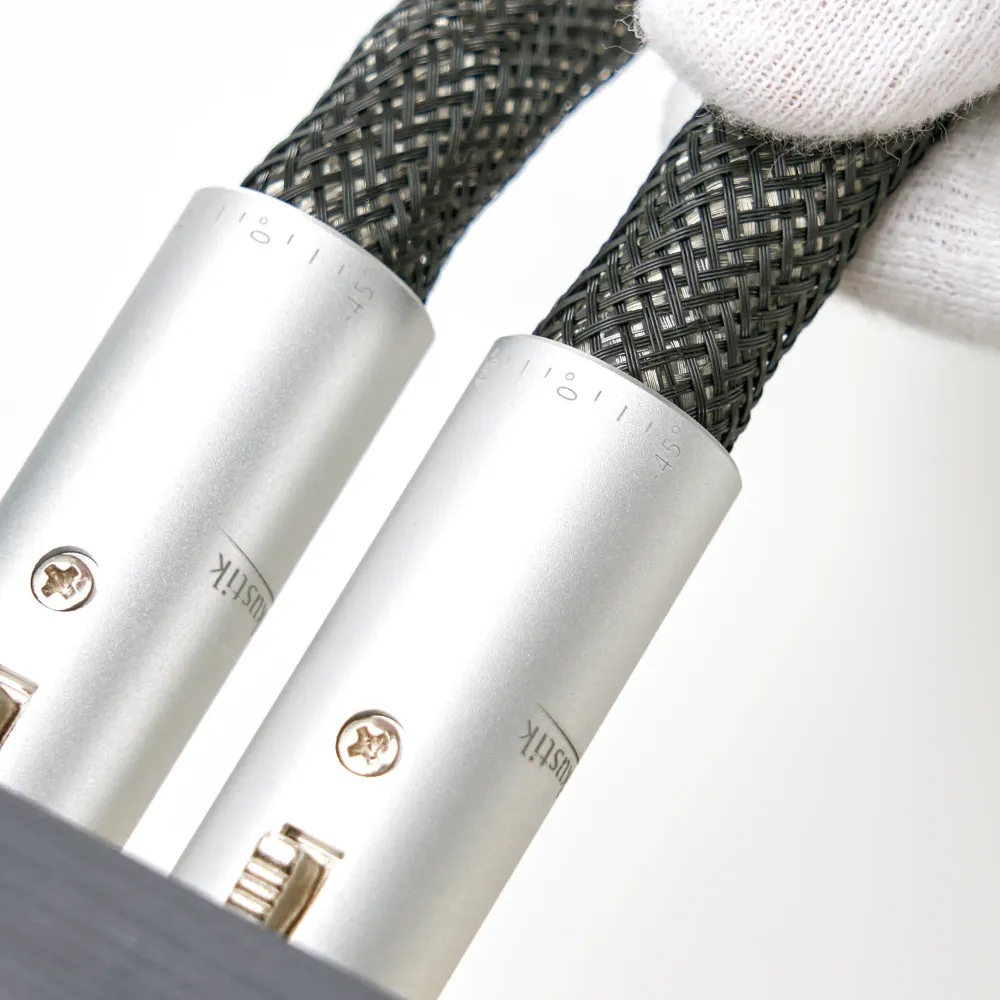

New XLR 180° plug: It is only possible to insert XLR connectors in one direction. This can be annoying as the position of the XLR sockets in devices varies. In order for the cable to fit, it must sometimes be twisted by force. This puts a strain on cables, plugs and device sockets and sometimes simply looks a mess. The new XLR 180° plugs developed in-house can be rotated by +/- 45 degrees, i.e., up to a total of +/- 90 degrees from connector to connector. The finishing touch for perfect cabling.

Spesifikasjoner:

• Cable diameter: 13 mm
• Conductor design: Cross Link Super Speed waveguide
• Conductor material: High-purity OFC copper
• Conformity: CE, REACH, RoHS
• Connector assembly: Soldering
• Connector housing: Solid metal
• Contact enhancement: Rhodium-coated
• Contact material: Tellurium copper
• Design: Double symmetrical
• Dielectric: Air
• Jacket: PE network jacket
• Shielding: Dense copper braid, tin-plated (oxidation protection)
• Produksjonsland: Tyskland
