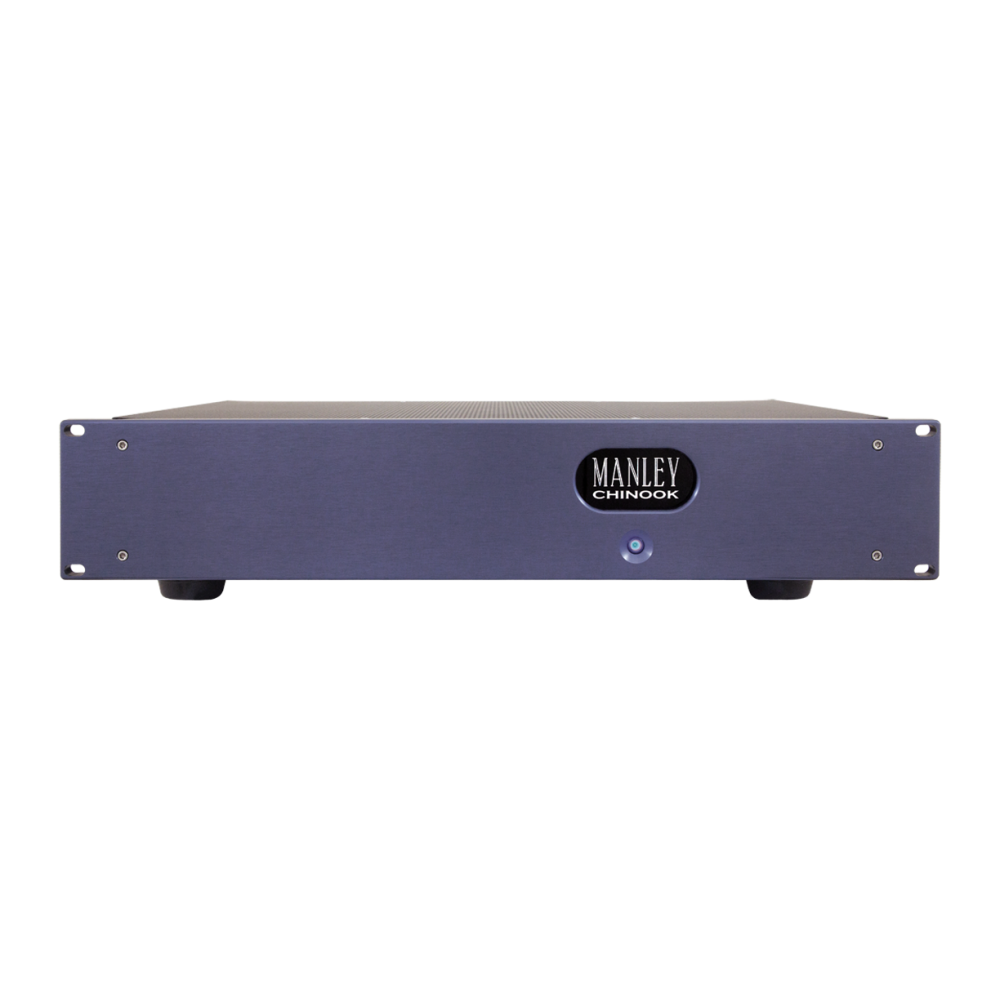

Made in the US, the Chinook is a one-box, tube-and-FET-cascode, MM/MC phono preamp. A pair of dual-triode 6922 tubes produces the gain, while a second, direct-coupled pair drives the output. Resistive and capacitive loading are selectable via rear-panel DIP switches. Though it lacked the slam and intensity of Manley's much more expensive Steelhead, the Chinook had a subtly warm overall sound, with clean transient attacks, generous sustain and decay, reasonably taut bass, and good soundstaging and imaging, said MF (Fra Stereophile Vol.35 No.8)
Manley representerer noe av det ypperste innen rørforsterkere og holder sterkt ved de analoge tradisjonene. Produktene lages for hånd i byen Chino på USAs vestkyst. Merket er velkjent for sine studioprodukter og flere av disse har fått legendestatus. Brukere av utstyr fra Manley inkluderer blant annet Johnny Cash, Pearl Jam, Adele, Keb' Mo', U2, AC/DC, Korn, Jay-Z, Eminem, Madonna, Alecia Keys, Dr.Dre, Michael Jackson, Christina Aguilera, Frank Zappa, Ramones, Miles Davis, Lou Reed, Beck, Neil Young, Flogging Molly og Ozzy Osbourne.
Fra Stereophile (Vol.35 No.8)
Made in the US, the Chinook is a one-box, tube-and-FET-cascode, MM/MC phono preamp. A pair of dual-triode 6922 tubes produces the gain, while a second, direct-coupled pair drives the output. Resistive and capacitive loading are selectable via rear-panel DIP switches. Though it lacked the slam and intensity of Manley's much more expensive Steelhead, the Chinook had a subtly warm overall sound, with clean transient attacks, generous sustain and decay, reasonably taut bass, and good soundstaging and imaging, said MF.
The spawn of the famous STEELHEAD, our CHINOOK uses the same clean and quiet audio circuit design. 45 or 60dB of GAIN can be set internally and rear-panel dip switches select input resistive and capacitance choices. There are tons of options to match any Moving Coil or Moving Magnet cartridge. Set it and forget it! Designed for the real music lover - not the switch tweaker - the CHINOOK’s elegant design and efficient construction keep the price affordable AND devotedly handcrafted in the USA at Manley Labs.
Angling for an affordable yet world-class vacuum tube phono stage? The hunt is over! The spawn of the Manley Steelhead - one of the world's greatest phono preamplifiers - Stereophile Class A Recommended Component and The Absolute Sound's Preamp of the Year, has arrived. The Chinook epitomizes the sound of the Steelhead. Designed for the music lover, not the switch tweaker.

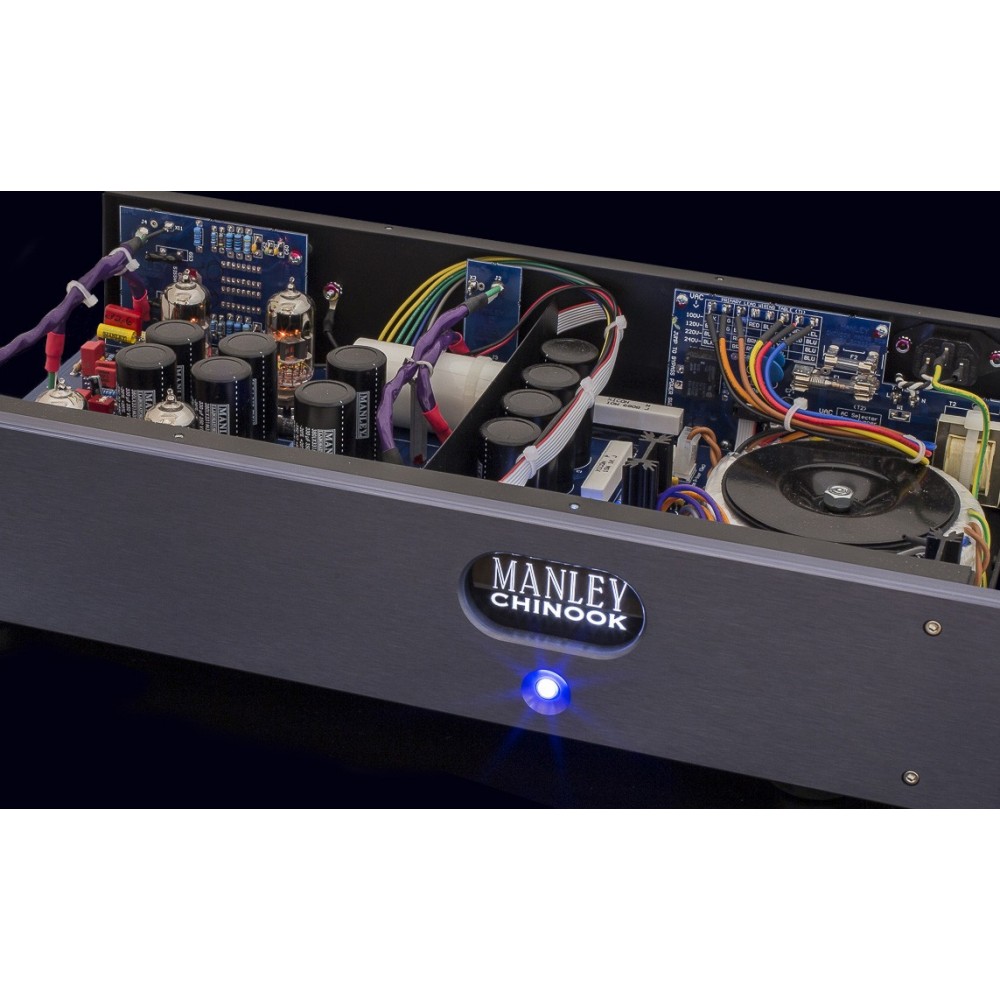

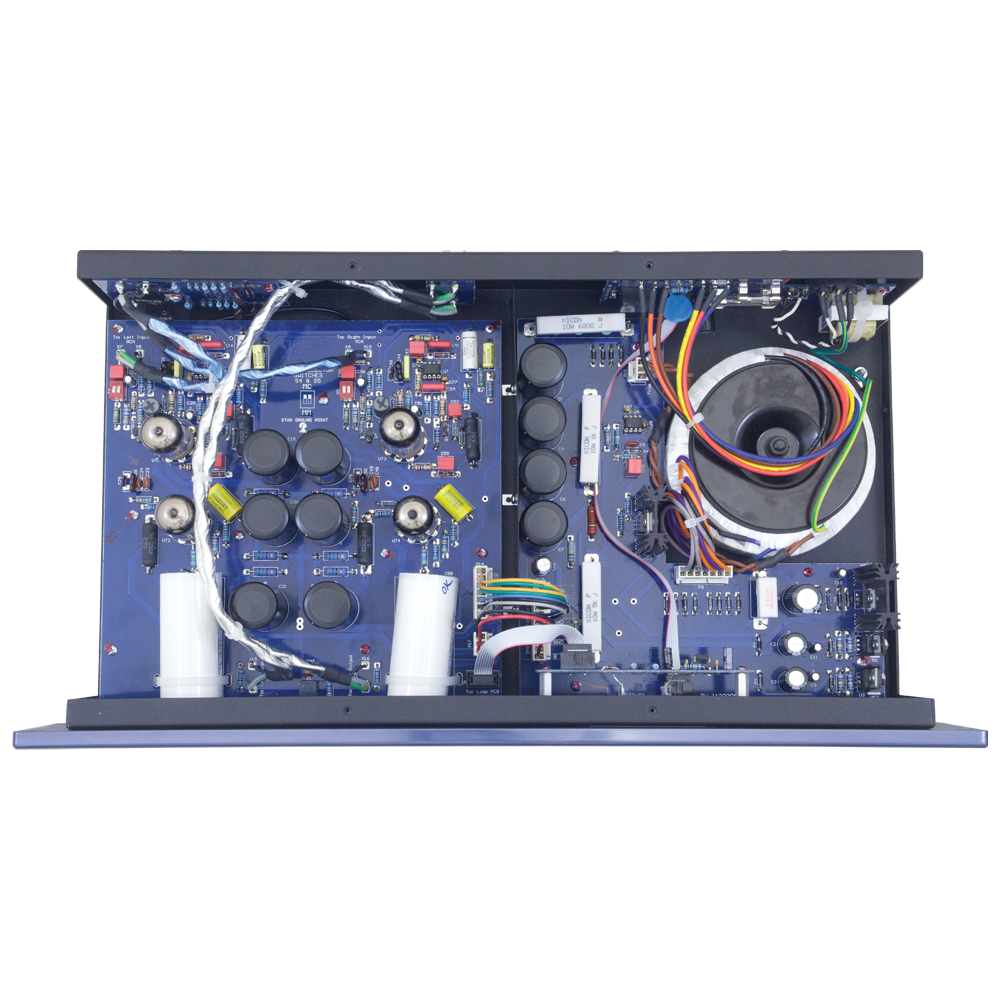

Like the Steelhead, each channel employs the two triode sections of a 6922 for amplifying duties with highly accurate passive RIAA equalization networks. In the Chinook, the signal is then directly coupled to another 6922 dual triode serving as the output driver in a White Follower configuration. This output stage circuit is our favorite because of its super-low output impedance and beefy current-driving capabilities. It can drive long cable lengths and difficult loads, tube or solid-state. Bring it on. No wimpy cathode followers here!

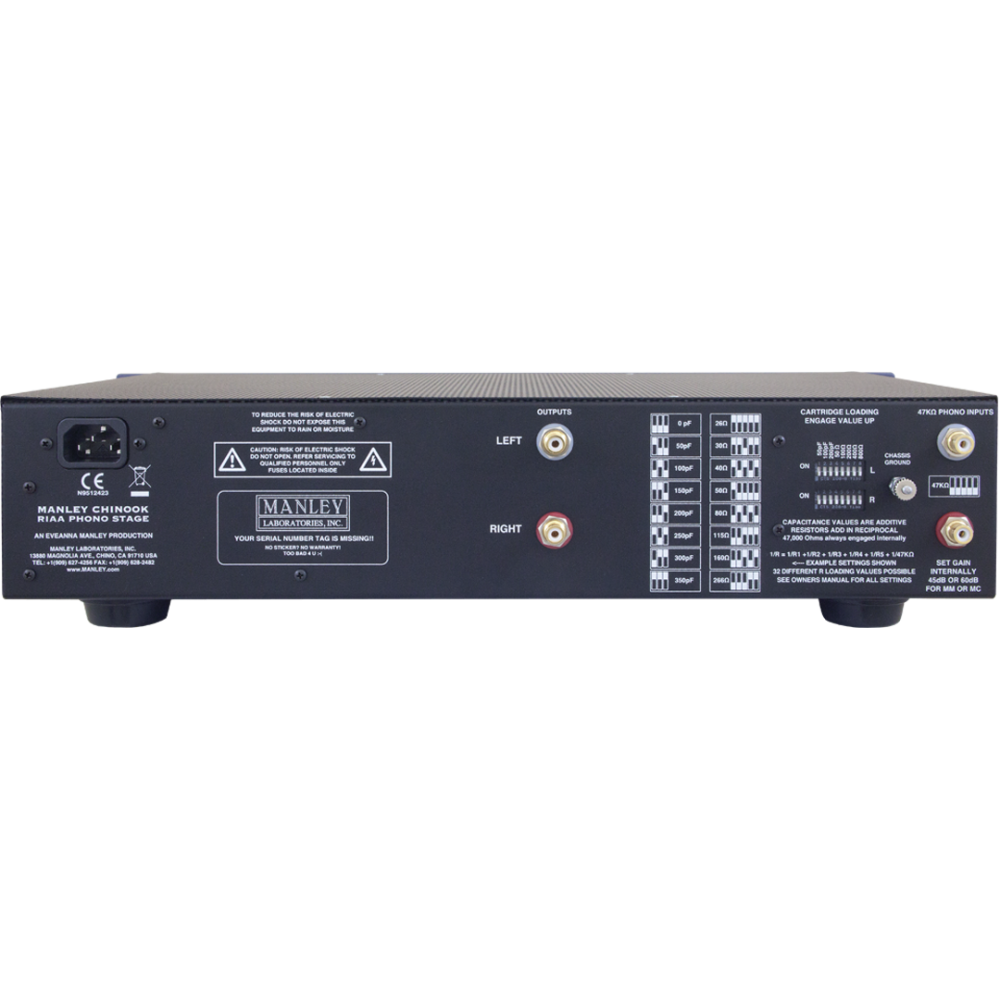

Setting up the Chinook couldn't be easier. There are two internal settings for optimal gain: 45dB for Moving-Magnet cartridges and 60dB for Moving-Coil cartridges. Set it and forget it! The back panel contains DIP switches for adjusting the input resistive and capacitance loading values. 31 possible options between 26 and 800 Ohms plus 47k Ohms and 7 capacitive loading choices between 50 pF and 350 pF provide flexibility to match any cartridge and fine tune the tone. Audiophile-grade and time-proven componentry is used throughout, embodying Manley's dedication to seductive sonics, combined with the reliability that professionals around the world depend on. At just about a quarter of the price of our revered Steelhead preamplifier, the Chinook's focus is on elegance of design, careful execution, efficient construction, and appreciable quality.
Designed and built in California, the Chinook exemplifies Manley's commitment to our local community and to a simple, clean, and quiet signal path. The Chinook demonstrates the supreme linearity of vacuum tubes while providing the flexibility needed to embrace any turntable setup. Everything from the most exotic 180 gram audiophile pressing to 25 cent thrift-store classics will be reproduced accurately and musically. Don't let this one get away! Hook a Chinook!
Vacuum Tube Complement: 6922 x 2 (gain stage) plus 6922 x2 (output stage). Any 6DJ8, 7308, ECC88 types may be used.
Unbalanced Input and Output connections via Manley Teflon ® & Gold plated RCA jacks
Automatic Mute Timer: On initial power up output jacks are muted for approximately 45 seconds. Automatic mute circuit allows tubes to warm up and circuitry to settle. At power down, output jacks are immediately muted.
Input Termination Capacitance (MM/MC): 3-position user-selectable capacitor values of 50pF, 100pF, and 200pF yield resultant combinations of: 50, 100, 150, 200, 250, 300, and 350pF
Moving Magnet Input Impedance: 47k Ohms, fixed

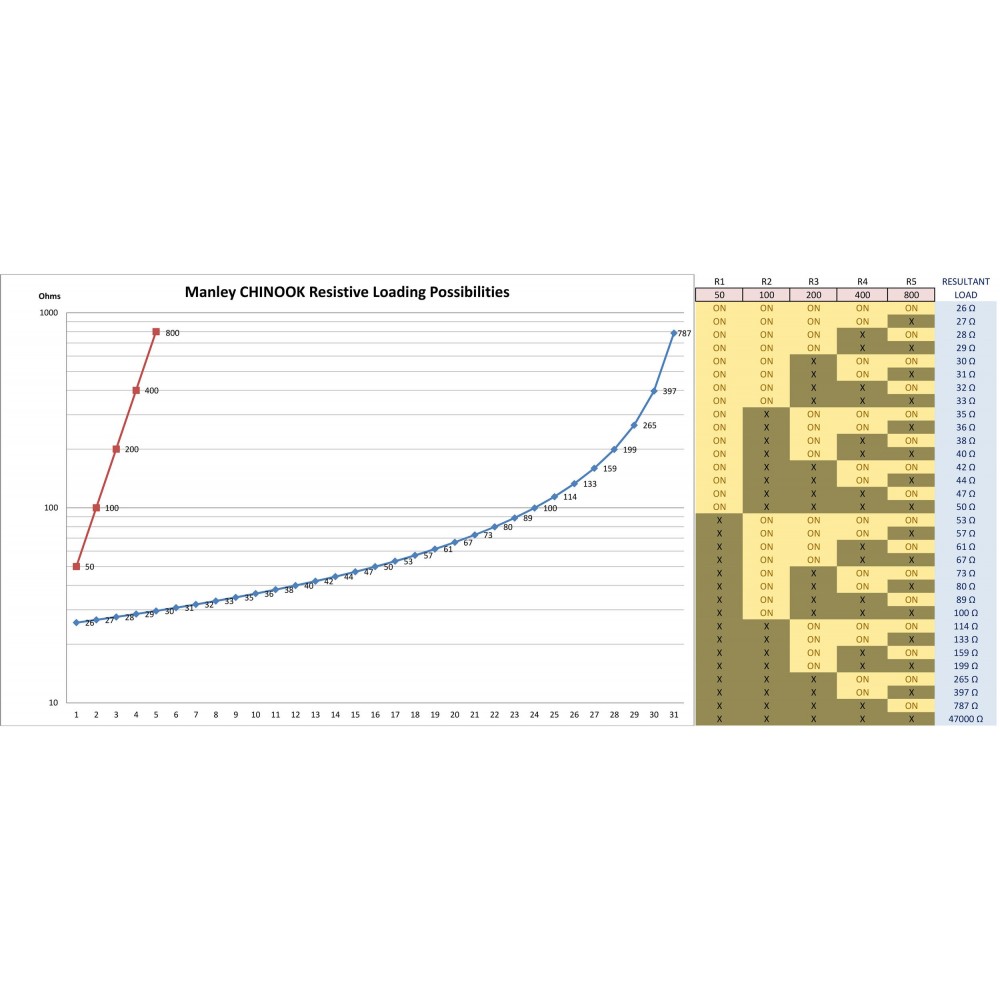

Moving Coil (MC) Input Impedance: 5-position user-selectable resistor values of 50, 100, 200, 400, and 800 Ohms. There are 32 possible loading possibilities
Gain: Internal DIP switches select 45dB or 60dB
Deviation from RIAA curve: Less than ± 0.5 dB from 20Hz to 20kHz at any gain setting. Typically less than ±1dB from 10Hz to 100kHz.
